In the rapid booming new energy market with soaring demand for high-power heat-resistant components, ZENITHSUN Thick Film Non-Inductive Water-Cooled Resistor stands out as a reliable power load component for high-current and high-voltage equipment. Manufactured by Shenzhen ZENITHSUN Electronics Co., Ltd., this innovative water-cooled resistor solves the overheating and high inductance pain points of traditional resistors, winning wide recognition from wind power, new energy vehicle and energy storage equipment manufacturers.
Today we will fully unlock its structural design, core advantages and multi-scenario industrial application values.
1. Exclusive Low-Inductance Structural Design of ZENITHSUN Thick Film Non-Inductive Water-Cooled Resistor

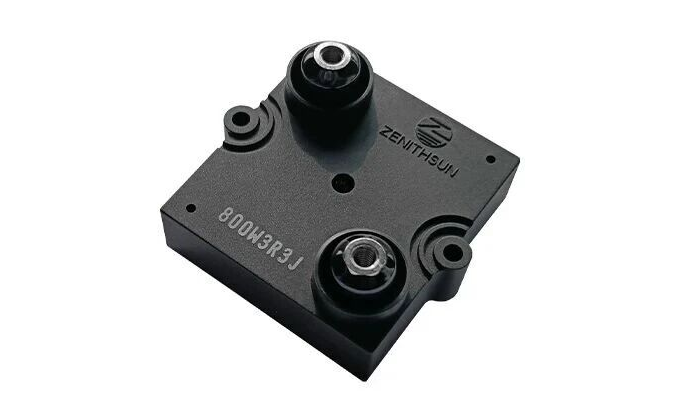

The core competitiveness of ZENITHSUN Thick Film Non-Inductive Water-Cooled Resistor originates from its mature thick film sintering process.
This resistor takes high thermal conductivity ceramic substrate as the base material. Ruthenium-based resistance paste is printed on the substrate via professional thick film technology, then sintered under ultra-high temperature to realize ultra-low inductance non-inductive performance.
The whole unit is encapsulated with high-strength engineering plastic shell for safety insulation. Its bottom plate fits closely with water cooling radiator by flat mounting structure. Circulating cooling water continuously takes away operating heat to keep stable working temperature.
ZENITHSUN also sets standardized operation specifications to extend product service life: Users shall fix the resistor on the water cooling radiator first, turn on the circulating water supply before powering on; when stopping operation, cut off the power supply prior to closing water circulation to avoid component burnout caused by dry heating.
2. Core Competitive Advantages That Differentiate ZENITHSUN Water-Cooled Resistors From Ordinary Resistors
Compared with air-cooled and conventional metal resistors on the market, ZENITHSUN Thick Film Non-Inductive Water-Cooled Resistor owns multiple prominent strengths suitable for heavy-duty industrial environments:
Low cooling cost: Ordinary liquid cooling resistors require deionized water for circulation, while this model supports tap water or distilled water for cooling circulation, greatly cutting long-term operating costs for enterprises.
Complete power range: Covering 100W to 1000W, it meets diverse power matching demands of medium and small high-power equipment.
Comprehensive stable performance: Featuring high power density, compact size, ultra-low inductance, stable operation, high insulation voltage resistance, low base plate operating temperature and long service cycle.
Durable wiring structure: Copper stud terminals are adopted for outgoing leads, which can bear large current connection without loose contact under long-time operation.
3. Wide Industrial Application Scenarios & Stable Production Capacity Layout
Supported by standardized mass production lines, the production cycle of ZENITHSUN thick film non-inductive water-cooled resistor is controlled within 2 to 3 weeks, guaranteeing timely order delivery for global clients.
This series resistor covers dozens of high-growth industries: new energy vehicles, wind power generation, photovoltaic power generation, variable speed drive equipment, medical devices and complete power generation systems. It can serve as absorption resistor, discharge resistor, filter resistor, voltage divider resistor and load resistor in equipment.

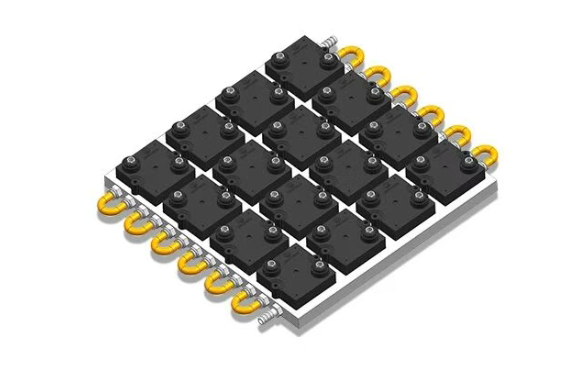

Besides general industrial equipment, it is also applicable to high-end power facilities including HVDC converter valves and SVC static var compensators. Many equipment manufacturers choose to embed ZENITHSUN Thick Film Non-Inductive Water-Cooled Resistor together with matched water cooling radiators inside resistor cabinets and motor controller boxes to realize integrated compact equipment design, which perfectly matches the client’s previous demand of installing resistors inside liquid-cooled motor controller housings.
